SLN0401 NTC Temperature Sensor
SLN0401 NTC Temperature Sensor
The NTC Temperature Sensor is a reliable and cost-effective solution designed for environmental temperature measurement, temperature & humidity indicators, and air-conditioning systems.
This sensor features a 10kΩ ±1% NTC thermistor at 25°C with a B value of 3435K ±1%, ensuring stable performance and compatibility with standard temperature control circuits. The sensing element is sealed with high-quality epoxy resin, providing excellent resistance to moisture and water intrusion.

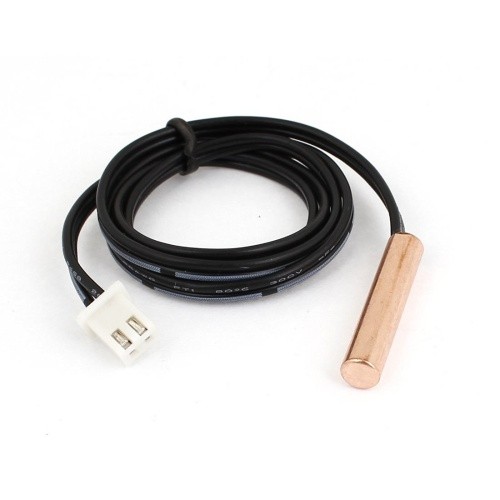

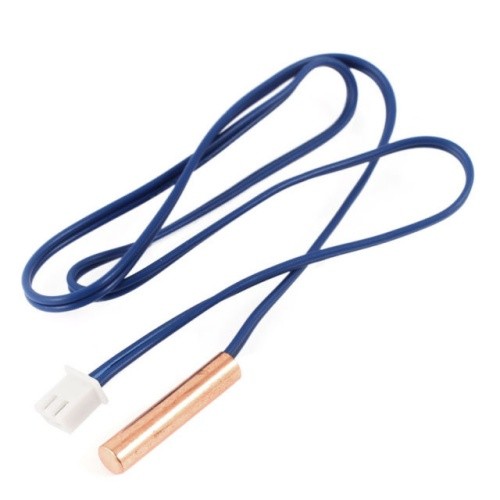

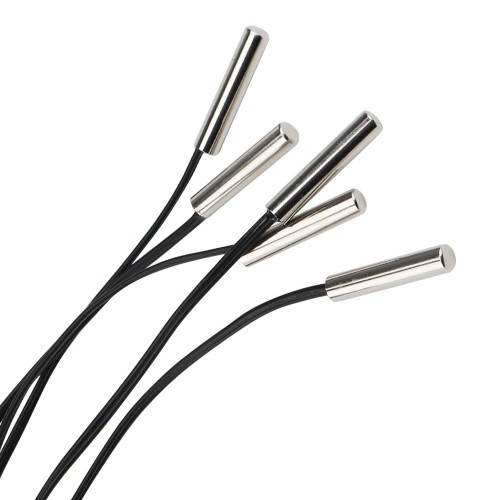

The probe shell is available in copper or food-grade SS304 stainless steel, allowing flexible selection based on application requirements. With a wide operating temperature range from -40°C to +105°C, the N0401 sensor performs reliably in diverse environmental conditions.
Key Features
● Standard 10kΩ ±1% NTC thermistor
● B3435K ±1% for stable temperature response
● Waterproof and moisture-resistant epoxy sealing
● Optional copper or SS304 stainless steel shell
● Fast response with thermal time constant ≤15 seconds
● High insulation strength and long service life
Applications
● Temperature & humidity meters
●Environmental temperature monitoring
● Air conditioners
● HVAC control systems
● General-purpose temperature sensing equipment
Working Temperature Range: -40°C to +105°C
Thermal Time Constant: Max. 15 seconds
Insulation Voltage: 1800VAC, 0.5mA, 2 seconds
Insulation Resistance: ≥100MΩ @500VDC
The NTC Temperature Sensor offers a balanced combination of accuracy, durability, and cost efficiency, making it an ideal choice for OEM manufacturers and system integrators in environmental and HVAC applications.
Customization Support
Starlight Sensor provides full customization services including resistance value, B constant, probe structure, cable type and connector options to meet specific application requirements.
