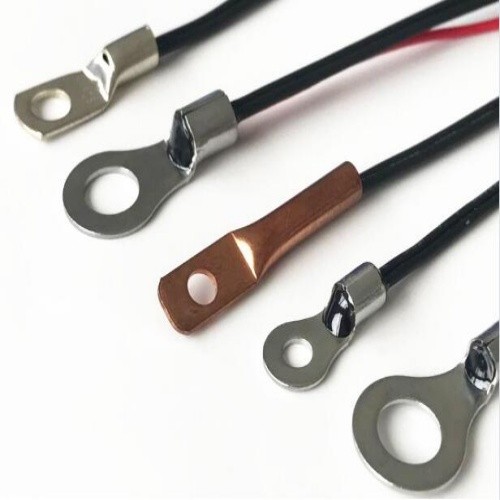

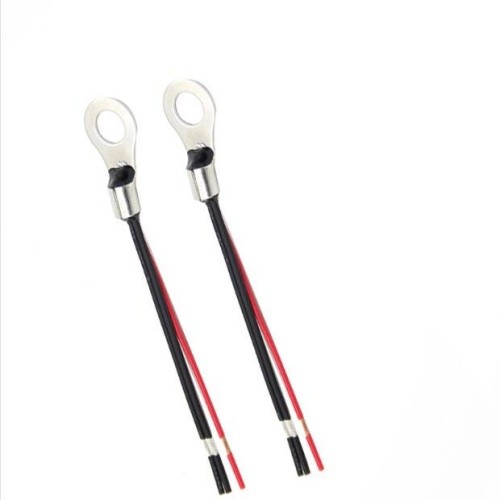

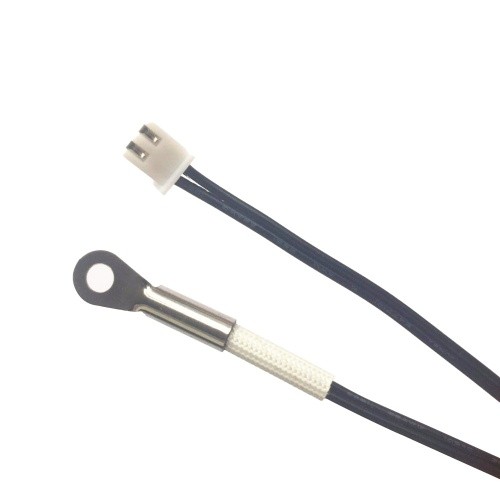

SLN0101 NTC Temperature Sensor
Product Overview
The SLN0101 NTC Temperature Sensor is designed for accurate surface temperature measurement in power supplies, heating plates, and electronic equipment. Its compact structure allows easy installation directly onto the measured surface, ensuring fast thermal response and reliable temperature feedback.
Key Features
● Surface-mount design for direct temperature sensing
● High temperature stability over a wide operating range
● Fast thermal response time (≤10 seconds)
● Excellent electrical insulation and safety performance
● Dimensions and structure can be customized according to installation requirements
Typical Applications
● Power supply temperature monitoring
● Heating plate temperature control
● Industrial electronic equipment
● Household appliances
● Thermal protection systems
Technical Characteristics
| Parameter | Specification |
|---|---|
| Working Temperature Range | -30°C ~ +200°C |
| Thermal Time Constant | Max. 10 seconds |
| Insulation Voltage | 1800VAC, 0.5mA, 2 seconds |
| Insulation Resistance | ≥100MΩ at 500VDC |
Customization Support
Starlight Sensor provides OEM & ODM customization for resistance values, temperature curves, cable length, connector types, and mechanical structures to meet specific customer applications.
