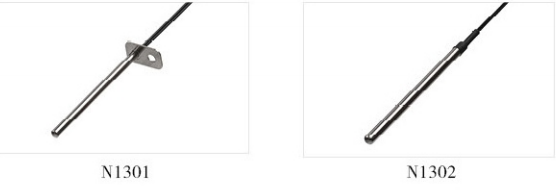

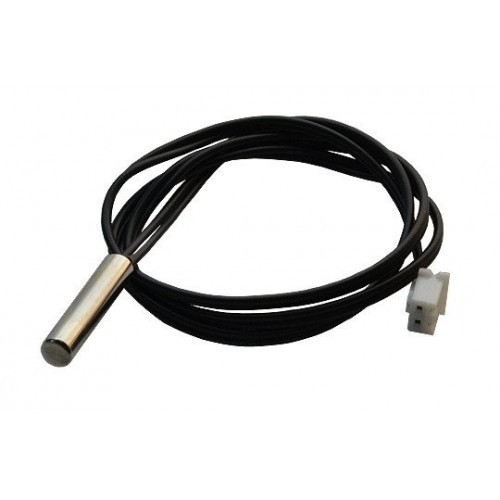

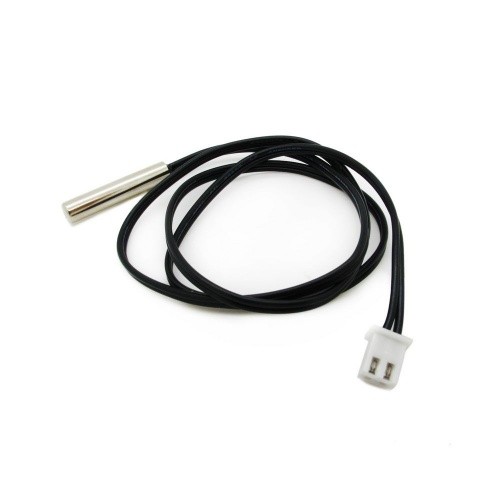

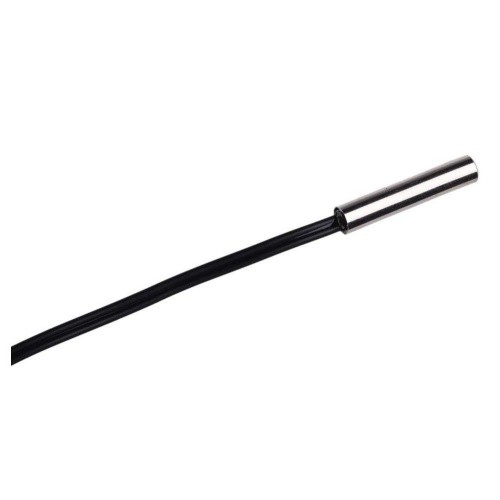

SLN1301 NTC Temperature Sensor

The NTC Temperature Sensor is specifically designed for coffee machines, water dispensers, water tanks, and other liquid heating systems requiring reliable and accurate temperature monitoring.
This sensor adopts a standard 10kΩ resistance at 25°C with a B value of 3950K, ensuring excellent compatibility with mainstream temperature control circuits used in commercial and household appliances.
The probe is manufactured with food-grade SS304 stainless steel, offering superior corrosion resistance, hygiene safety, and long service life in water-contact environments. Combined with an epoxy-sealed, waterproof structure, the sensor delivers stable performance even under high humidity and frequent thermal cycles.

Applications
● Commercial and household coffee machines
● Water dispensers
● Water tanks
● Beverage heating systems
● Temperature-controlled liquid equipment

Key Features
● Standard 10kΩ ±1% NTC thermistor, B3950K ±1%
● Food-grade SS304 stainless steel probe
● Moisture-proof and waterproof construction
● Fast thermal response (MAX. 7 seconds)
● Easy installation with fixed mounting structure
● Suitable for long-term operation in liquid environments

Technical Specifications
Working Temperature Range: -30°C to +105°C
Thermal Time Constant: Max. 7 seconds
Insulation Voltage: 1800VAC, 0.5mA, 2 seconds
Insulation Resistance: ≥100MΩ @500VDC
The NTC temperature sensor is an ideal solution for manufacturers seeking stable temperature control, food safety compliance, and long-term reliability in beverage and liquid heating applications.

Customization Support

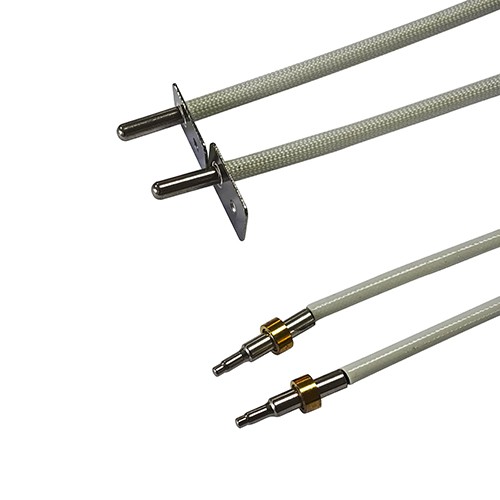

Starlight Sensor provides full customization services including resistance value, B constant, probe structure, cable type and connector options to meet specific application requirements.
