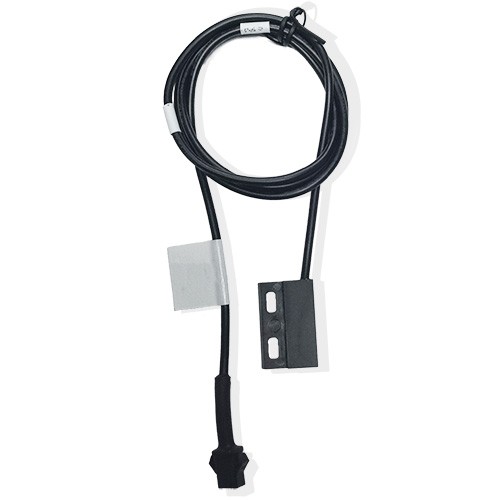

The TDS260 is a premium magnetic door sensor harness engineered by Shenzhen Starlight Sensor. It features a precision-molded RAST 2.5 IDC connector and a 3.5-meter long-reach cable, designed for optimal performance in smart appliances and industrial systems.

Technical Specifications
Product Number: TDS2601
Connector Type: 2-way RAST 2.5 IDC PCB Edge Connector
Cable Type: OD 3.6mm PVC 24AWG (11/0.16)
Cable Length: 3500±25mm, customized
Contact Form: N.O. type (Normally open when no magnet present)
Housing Material: Black ABS
Operating Gap: 15-25mm

Electrical Parameters
Max. Voltage 100VDC
Max. Current 0.5A
Max. Power 10W
Temperature Rating 105°C

Quality & Compliance
Safety: Cables are UL-certified 105-degree rated materials.
Reliability: Solder points are smooth and rounded without bifurcation.
Standards: All materials comply with Hazardous Substance Management Specification WI-QCA-014.
