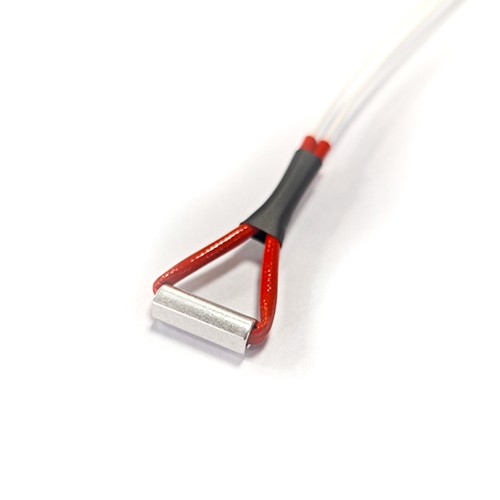

SLN0901 NTC Temperature Sensor for Coffee Machines
The SLN0901 NTC Temperature Sensor is a high-temperature resistant surface-mount thermistor sensor designed for coffee machines and heating plates. It features an aluminum shell structure, ensuring fast thermal response, excellent stability, and long-term durability in high-temperature environments.
Applications
● Espresso machines
● Fully automatic coffee machines
● Heating plates and boiler systems
● Small home appliances requiring precise temperature monitoring
Key Features
● High temperature resistance up to 230°C
● Compact aluminum shell for efficient heat transfer
● Easy surface-mount installation
● Stable resistance characteristics and excellent consistency
● Suitable for continuous heating applications
Electrical Characteristics
Nominal Resistance (R25): 100kΩ ±1%
B Value: B25/85 = 4066K ±1%
Thermal Time Constant: Max. 10 seconds
Environmental & Safety Performance
Operating Temperature Range: −30°C ~ +230°C
Insulation Voltage: 1800VAC, 0.5mA, 2s
Insulation Resistance: ≥100MΩ @500VDC
Customization Support
Starlight Sensor provides full customization services including resistance value, B constant, probe structure, cable type and connector options to meet specific application requirements.
